Recently, I published schema-dts (npm, GitHub), an open source library that models JSON-LD Schema.org in TypeScript. A big reason I wanted to do this project is because I knew some TypeScript type system features, such as discriminated type unions, powerful type inference, nullability checking, and type intersections, present an opportunity to both model what Schema.org-conformant JSON-LD looks like, while also providing ergonomic completions to the developer.

In a series of posts, I’ll go over some of the Structured Data concepts that lent themselves well to TypeScript’s type system, and those concepts that didn’t. First up: the type hierarchy of JSON-LD Schema.org Schema, and how can be represented in TypeScript.

Note: I’ll be describing JSON-LD in general in very broad strokes and will spend more time discussing how Schema.org JSON-LD looks like in particular. For those who are familiar with the JSON-LD spec, you’ll see I took a few liberties. This is because schema-dts makes a few assumptions, such as the @context being a known constant, etc. schema-dts also foregoes some features, such as specifying multiple types of a node object, etc.

Modeling the Schema.org class structure with the TypeScript Type System

Schema.org JSON-LD node objects are always typed (that is, they have a @type property that points to some IRI–a string–describing it). Given a @type you know all the properties that are defined on a particular object. Object types inherit from each other. For example, Thing in Schema.org has a property called name, and Person is a subclass of Thing that defines additional properties such as birthDate, and inherits all the properties of Thing such as name. Thing has other sub-classes, like Organization, with it’s own properties, like logo.

Let’s use this minimal example to try a few approaches:

1. Modeling each with inheritance

interface Thing {
  "name": string;
}
interface Person extends Thing {
  "@type": "Person";
  "birthDate": string;
}
interface Organization extends
    Thing {
  "@type": "Organization";
  "logo": string;
}

If we had a const something: Thing , then we could assign it to a Thing, Person, or Organization. So that’s a start! But there are a few problems:

  • Using type Thing on it’s own isn’t quite right, as it is missing a @type annotation. More broadly, non-leaf types (types that a super-class of another) are not representible this way.
  • Writing object literals inline will cause TypeScript’s excess property checks to complain that "@type", "birthDate", and "logo" are not a known property of Thing.
  • Lacking completions for "@type". If I was filling in a complex nested object whose property had some type, it would be great if I can look for helpful completions on "@type" and see what allowed types exist for a certain property.

2. Modeling each object individually

interface Thing {
  "@type": "Thing";
  "name": string;
}
interface Person {
  "@type": "Person";
  "name": string;
  "birthDate": string;
}
interface Organization {
  "@type": "Organization";
  "name": string;
  "logo": string;
}

Another approach altogether is to fully roll all parent types of each object separately. This solves the first problem, where types that are a superclass of other types can still be represented, but introduces (and exacerbates) the existing problems.

  • “Sub-classes” are not assignable to their parent types. For example, an object of type Person cannot be assigned to a variable of type Thing. It also cannot be used as the value of a property of a super-class type.

3. Modeling super-classes as discriminated unions

type Thing =
    Person | Organization;
interface Person {
  "@type": "Person";
  "name": string;
  "birthDate": string;
}
interface Organization {
  "@type": "Organization";
  "name": string;
  "logo": string;
}

By defining Thing (or, generally, a parent class) as a union of it’s sub-classes, it’ll behave like a discriminated union. It’s discriminated because each possible type within the union has a property (@type) that is sufficient to tell the compiler which type of the union that object is.

Discriminated unions allow us to achieve assignability, completions (typing ‘"@type": "‘ inside of a Thing will suggest "Person" or "Organization"), and proper type checking without tripping up excess property checking when writing properties of a sub-class.

The problem? We’re back to not being able to individually express a type with sub-classes (e.g. Thing) individually. Back to the drawing board.

4. Hybrid Approach: Modeling parent classes within unions

When we think of the Thing Schema.org class, three separable concepts come to mind. It could be a node

  1. with the actual "@type": "Thing"
  2. that has all the properties of Thing
  3. that has a "@type" equal to that of any of the (direct or indirect) sub-classes of Thing.

(1) can be represented as a specific object literal; (2) can be represented as some type to be extended (or intersected); and (3) can be represented as a discriminated union.

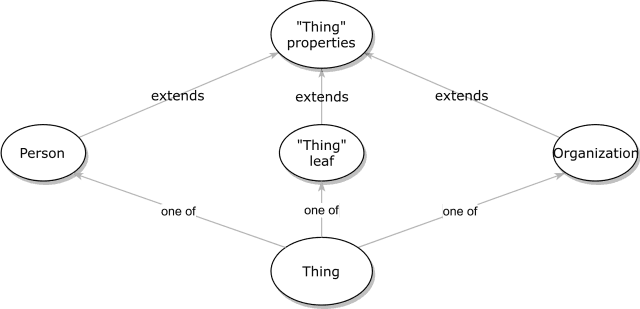

Graph illustration of TypeScript interfaces described in the nest 4 code blocks.
Representing the Type Structure of our set of classes
interface ThingBase {
  "name": string;
}
interface ThingLeaf
    extends ThingBase {
  "@type": "Thing";
}
interface Person
    extends ThingBase {
  "@type": "Person";
  "birthDate": string;
}
interface Organization
    extends ThingBase {
  "@type": "Organization";
  "logo": string;
}
type Thing = ThingLeaf | Person | Organization;

Here, Thing, Person, and Organization can all be used independently. And we have the properties we want:

  • A Person or Organization is assignable to a Thing.
  • A Thing can exist with "@type": "Thing".
  • Thing is a discriminated union and can suggest "Thing", "Person", or "Organization" when typing a "@type" value.

TypeScript will also type check our deeply nested properties according to their types.

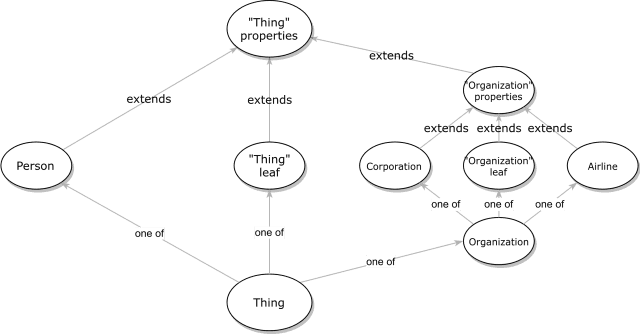

Best thing about this approach, it’s recursive. Consider, for example, two sub-types of Organization: Airline and Corporation. Those can be modeled recursively as the graph shows below.

The class hierarchy is composable by making sure "Base" types extend other "Base" types, and union types aggregate all "complete" types, in addition to leaf types.
Examples of the recursive nature of the type model

Getting to a Working System

When schema-dts generates types, it uses a very similar model as described above. Notably different, is that I use type intersections (A & B) instead of interfaces (interface B extends A) to simplify some of the nested expressions that show up.

In schema-dts, every “node” type is represented like Thing in that it has a “base” type, and represents the “real” type as a union of a leaf and other sub-classes.

In future articles, I’ll discuss how to represent “enums”, the limitations of the TypeScript type system with data types, and how to represent properties.
